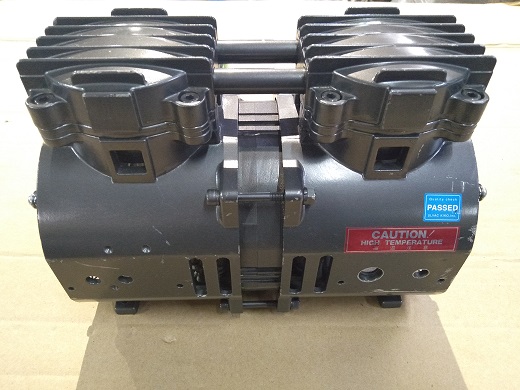

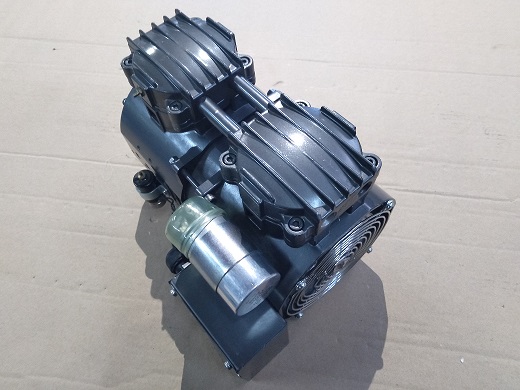

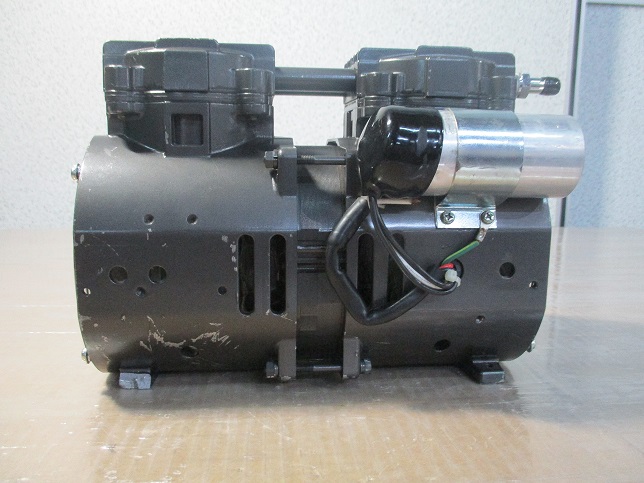

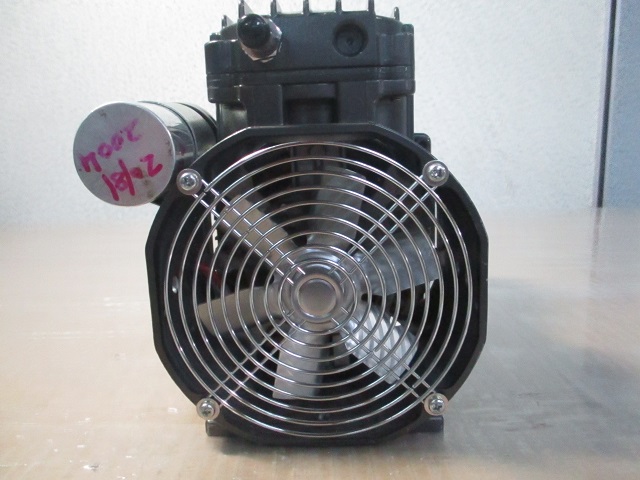

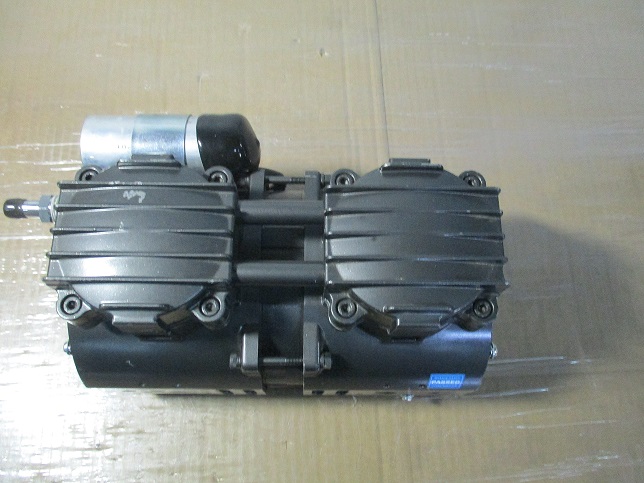

BRAND : ULVAC KIKO MODEL : DOP-80SP DESCRIPTION : Compact size with large displacement. Dry vacuum pump using no oil in the gas contact area. Rich lineup available to suit your application. Safety design with built-in automatic reset type thermal protector. Operation is possible from atmospheric pressure. Continuous operation in all pressure zones is possible. Simple structure and easy maintenance. SPECIFICATION : Actual Pumping Speed L/min 80 84 Maximum pressure MPa 0.5 Motor Single phase, 100V, 300W, 4P, Capacitor run Full load current A 5 5.5 Weight kg 9 Inlet, outlet pipe diameter mm O.D. dia.9 × I.D. dia.5 (Rc 1/4) Ambient temperature °C 7– 40 Overall dimensions mm 168.5(W) × 288(L) × 181(H) Weight : 7 kg CONDITION : NEW *TESTED , GOOD RUNNING CONDITION ( PRICE AS PER FOB PRICE ) ( PRICE IS NEGOTIABLE )
